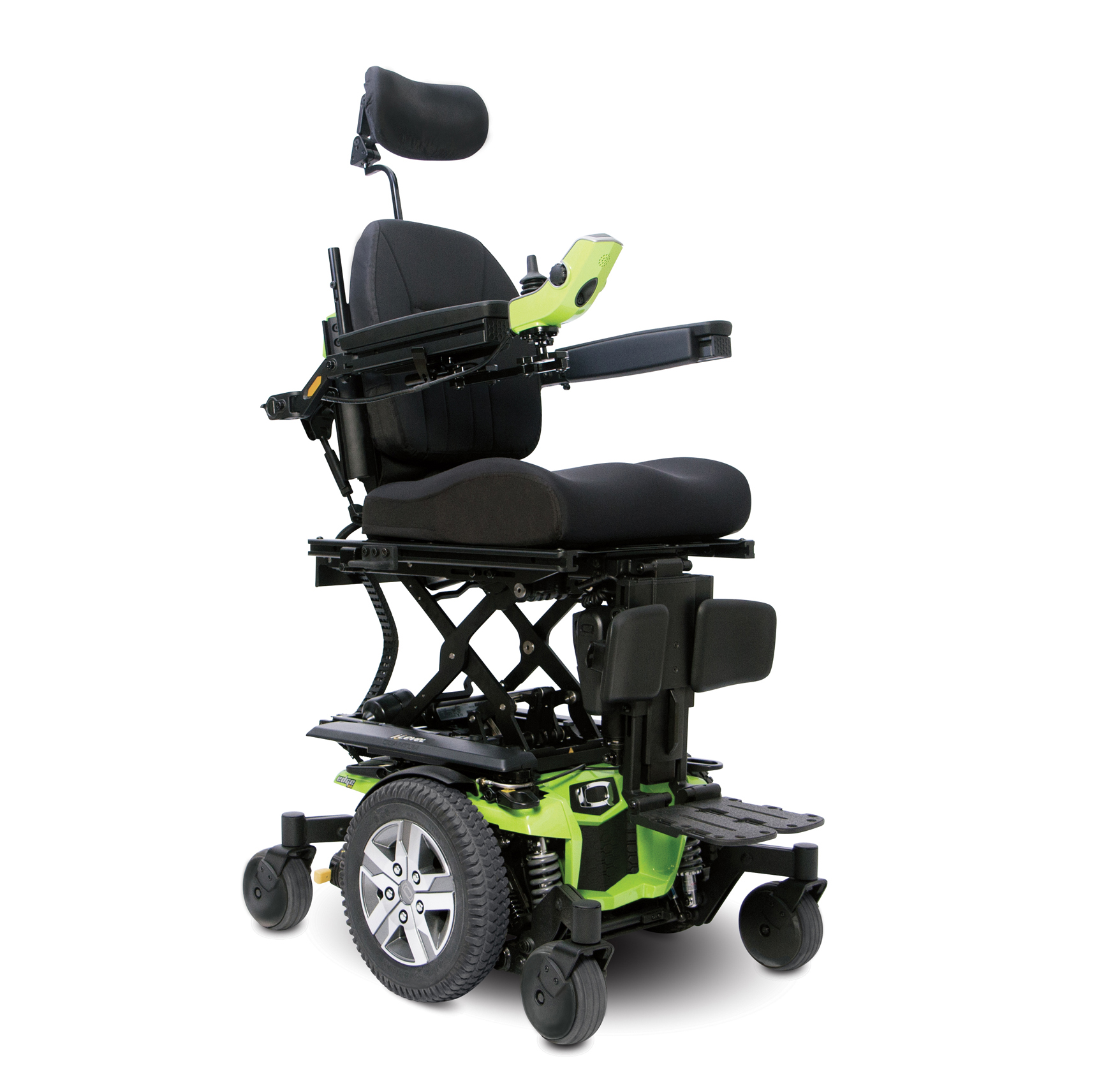

Quantum Q6 Edge

HomeAids to Daily LivingQuantum Q6 Edge

From Quantum rehab

Quantum Q6 Edge
Quantum Q6 Edge thumbnail
×
1 / 1
Quantum Q6 Edge
❮ ❯

Quantum Q6 Edge thumbnail
Product Order Request

  • In Stock

Quantum rehab
ModelQ6 Edge® 2.0
Drive ConfigurationMid-wheel drive
Drive Wheels14" Solid
Optional: 14" Pneumatic
Optional: 14" Knobby
Caster WheelsFront: 6" Solid1
Rear: 6" Solid1
Anti-Tip WheelsN/A
Maximum Speed4Up to 6.25 mph13
Ground Clearance2.7" (battery tray)
Turning Radius520.5"
With 8" casters2: 23.25"
Overall Length1132.23"
With 8" casters2: 40.48 without foot riggings
Base Width24.4"
Seating SizesTRU-Balance® 3
Synergy®/Static: W: 10-22" D: 10-22"
Power Tilt: W: 12-22" D: 12-22"
Lift & Tilt: W: 12-22" D: 12-22"
TRU-Balance® Flex Seat
W: 15-22" D: 15-20"
Seat-to-Floor Heights16,17TRU-Balance® 3
Synergy®/Static8: 15.875-17.875" (Not available with Synergy)
Power Tilt8: 17.5-19.5"
Lift & Tilt8: 17.5-19.5"
TRU-Balance Flex Seat
16.5" – 19.5"
Manual Recline10Yes
Battery Size6NF-22 (2)
Battery Weight1438 lbs.
Available Electronics1275A Q-Logic NE
75A Q-Logic NE+
120A Q-Logic 3 EX
Battery Charger8A Off-board
Motor Packages2-pole Mid-Wheel 6®
Weight Capacity7300 lbs.
Base Weight138.6 lbs.
With 8" casters2: 148 lbs.
Medicare Code CoverageGroup 3:
Standard (K0848/K0849)
Single Power (K0856/K0857)
Multiple Power (K0861)
Notes:
1 Standard
2 Optional
4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
7 Weight capacity is dictated by the selection of seating.
8 All measurements +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
10 Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
11 Without foot riggings.
12 All Quantum Rehab® units can be ordered with specialty controls.
13 6.25 mph speed available only with Q-Logic 3.
14 Battery weight may vary +/- 3 lbs. based on manufacturer.
16 Seat-to-floor heights are measured with the unit unloaded.
17 16.5" seat-to-floor height is not available with power tilt or iLevel®. 19.5" seat-to-floor height is not available with static seat or power recline.
